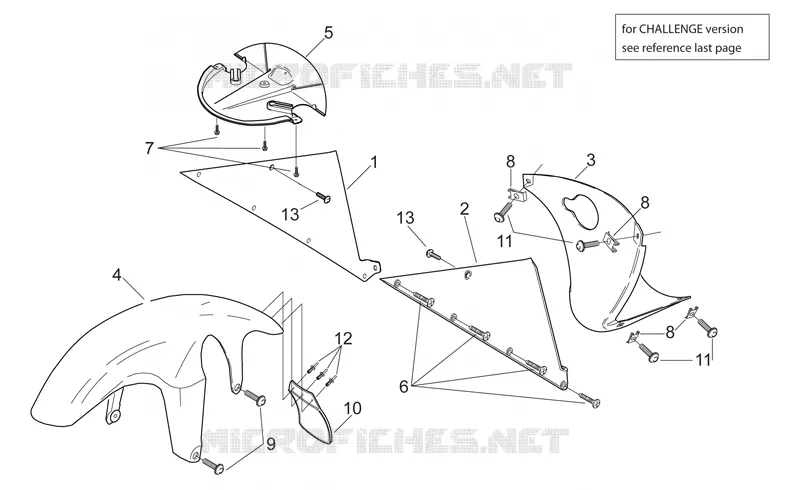

Front body II
1
2
3
4
5
6
7
8
8
8
9
10
11
11
12
13
13
1
RH internal fairing
AP8138898
Não disponível
2
LH internal fairing
AP8138899
Não disponível
3
Pillar
AP8131932
Não disponível
4
Front mudguard, black
AP8126731
Não disponível
4
Front mudguard, lemon yellow
AP8126849
Não disponível
4
Front mudguard, t.red
AP8126640
Não disponível
4
Front mudguard, fluo red
AP8126846
Não disponível
4
Front mudguard, black
AP8126655
Não disponível
4
Front mudguard, black
AP8156068
Não disponível
4
Front mudguard, fumi blue
AP8126751
Não disponível
5
Air deflector
AP8138941
Não disponível
6
Self-tap screw 3,9x14
AP8150413
3,43€ Preço unitário com IVA
7
Screw w/ flange M6x12
AP8152277
3,74€ Preço unitário com IVA
8
Clip M5
AP8102375
4,09€ Preço unitário com IVA
9
Screw w/ flange M5x16
AP8152298
5,33€ Preço unitário com IVA
10
Front mudg. Extension
AP8126631
Não disponível
11
Screw w/ flange M5x12
AP8152302
Não disponível
12
Plastic rivet, black
AP8202058
15,76€ Preço unitário com IVA
13
Screw w/ flange M5x9
AP8152339
3,94€ Preço unitário com IVA
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
