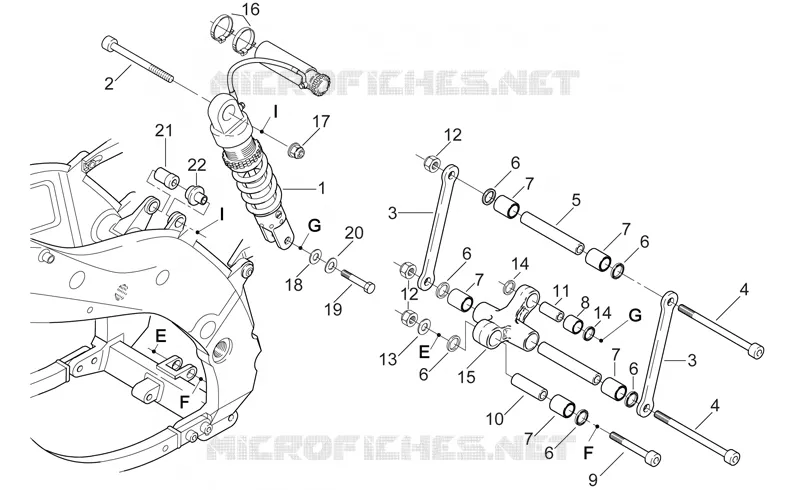

Rear shock absorber
1
2
3
3
4
4
5
6
6
6
6
6
6
7
7
7
7
7
8
9
10
11
12
12
13
14
14
15
16
17
18
19
20
21
22
1
Shock absorber
AP8123712
Não disponível
2
Hex socket screw M10x105
AP8152013
20,68€ Preço unitário com IVA
3
Single conrod
AP8135509
Não disponível
4
Hex socket screw M12x115
AP8150442
Não disponível
5
Connect.rod pin
AP8121919
33,43€ Preço unitário com IVA
6
Gasket ring
AP8120340
Não disponível
7
Roller bearing
AP8110075
18,68€ Preço unitário com IVA
8
Roller cage
AP8110066
24,88€ Preço unitário com IVA
9
Hex socket screw M12x80
AP8150448
Não disponível
10
Double connecting rod pin
AP8121885
Não disponível
11
Double connecting rod pin L25
AP8135608
Não disponível
12
Low self-locking nut M12*
AP8150432
4,09€ Preço unitário com IVA
13
Washer 13x24x2,5*
AP8150101
3,01€ Preço unitário com IVA
14
Gasket ring
AP8120838
Não disponível
15
Double conrod comp.
AP8135508
Não disponível
16
Hose clamp D25-45x8*
AP8220104
6,41€ Preço unitário com IVA
17
Self-locking nut
AP8152301
3,94€ Preço unitário com IVA
18
Washer 10,5x21x2*
AP8150020
3,74€ Preço unitário com IVA
19
Screw
AP8150227
Não disponível
20
Curved spring washer *
AP8150210
3,06€ Preço unitário com IVA
21
RH up.shock absor. bush
AP8121961
Não disponível
22
LH up.shock absor. bush
AP8121962
Não disponível
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
