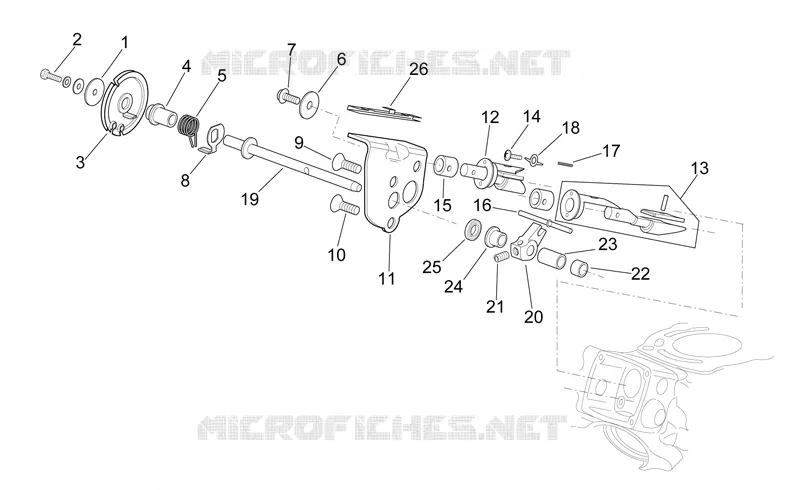

Valves assembly II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Washer
AP8600059
Não disponível
2
screw
AP8600058
Não disponível
3
Exhaust pipe pulley
AP8600057
Não disponível
4
Exhaust valve pulley spacer
AP8600056
Não disponível
5
Exhaust valve spring
AP8600055
Não disponível
6
Washer
AP8600054
Não disponível
7
screw
AP8600053
15,07€ Preço unitário com IVA
8
Exhaust valve lever
AP8600052
Não disponível
9
screw M6x12
AP8600051
Não disponível
10
screw
AP8600050
Não disponível
11
Exhaust valve cable plate
AP8600049
Não disponível
12
Exhaust valve RH
AP8600035
Não disponível
13
Exhaust valve LH
AP8600036
Não disponível
14
screw
AP8600037
Não disponível
15
Exhaust valve spacer
AP8600038
33,20€ Preço unitário com IVA
16
Exhaust valve pin
AP8600411
Não disponível
17
Spring
AP8600040
Não disponível
18
Plate
AP8600041
Não disponível
19
Exhaust valve shaft
AP8600042
Não disponível
20
Exhaust valve drive arm
AP8600043
Não disponível
21
screw
AP8600044
Não disponível
22
Bush
AP8600045
23,11€ Preço unitário com IVA
23
Spacer
AP8600046
Não disponível
24
Exhaust valve bush
AP8600047
Não disponível
25
Oil seal 8x16x5
AP8600048
Não disponível
26
Valve lever cable guide
AP8102418
Não disponível
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
