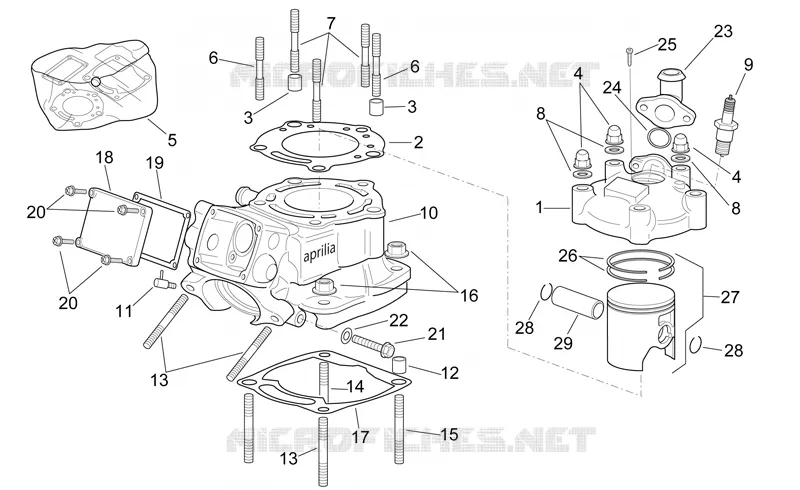

Vertical cylinder assembly
1
2
3
3
4
4
5
6
6
7
8
8
9
10
11
12
13
13
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
28
29
1
Cylinder head
AP8600001
Não disponível
2
Cylinder head gasket
AP8600002
Não disponível
3
Pin
AP8600003
Não disponível
4
Nut
AP8600004
Não disponível
5
Gasket set
AP8600026
Não disponível
6
Stud bolt l=51
AP8600005
Não disponível
7
Stud bolt l=45
AP8600006
Não disponível
8
Washer
AP8600007
Não disponível
9
Spark plug BR9ECM
AP8600008
Não disponível
10
Cylinder
AP8600010
Não disponível
11
Oil inlet union
AP8600011
Não disponível
12
Pin
AP8600012
Não disponível
13
Stud bolt l=30
AP8600013
Não disponível
14
Stud bolt l=35
AP8600014
Não disponível
15
Stud bolt l=40
AP8600015
Não disponível
16
Nut
AP8600016
Não disponível
17
Cylinder base gasket
AP8600017
86,82€ Preço unitário com IVA
18
Valve seat cover
AP8600018
Não disponível
19
Valve cover gasket
AP8600019
Não disponível
20
screw
AP8600020
Não disponível
21
Water unload screw
AP8600021
Não disponível
22
Washer
AP8600022
Não disponível
23
Water outlet union
AP8600023
Não disponível
24
O-ring
AP8600024
17,78€ Preço unitário com IVA
25
screw
AP8600025
Não disponível
26
Piston ring set
AP8600128
Não disponível
27
Piston assy
AP8600409
Não disponível
28
Snap ring
AP8600130
16,78€ Preço unitário com IVA
29
Piston pin
AP8600129
Não disponível
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
