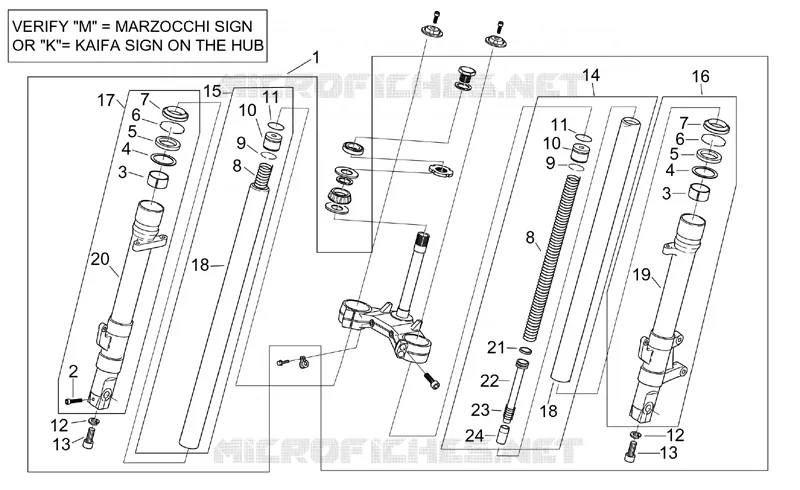

Front fork II
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
18
19
20
21
22
23
24
1
Front fork
AP8203981
Não disponível
2
Hex socket screw M6x30
AP8123574
Não disponível
2
Hex socket screw M6x30
AP8223116
Não disponível
3
Bush
AP8203447
19,48€ Preço unitário com IVA
3
Bush
AP8163294
Não disponível
4
Cup
AP8123705
Não disponível
4
Oil seal washer
AP8163295
Não disponível
5
Oil seal
AP8163296
17,26€ Preço unitário com IVA
5
Gasket ring
AP8123427
Não disponível
6
Stop ring
AP8163297
Não disponível
6
Stop ring
AP8123704
Não disponível
7
Dust cover
AP8203258
Não disponível
7
Dust cover
AP8163298
14,96€ Preço unitário com IVA
8
Spring
AP8223112
Não disponível
8
Spring
AP8203956
Não disponível
9
O-ring
AP8203949
4,54€ Preço unitário com IVA
9
O-ring
AP8163301
Não disponível
10
Plug
AP8203955
Não disponível
10
Plug
AP8223114
Não disponível
11
Circlip
AP8203950
4,54€ Preço unitário com IVA
11
Stop ring
AP8163302
Não disponível
12
Seal washer
AP8163435
Não disponível
12
Seal washer
AP8203572
3,94€ Preço unitário com IVA
13
screw M10x30
AP8163285
6,23€ Preço unitário com IVA
13
Screw M8x30
AP8203570
Não disponível
14
LH hub
AP8203958
Não disponível
15
RH hub
AP8203957
Não disponível
16
LH sleeve
AP8203990
Não disponível
17
RH sleeve
AP8203989
Não disponível
18
Sleeve cpl.
AP8223107
Não disponível
19
LH sleeve
AP8223109
Não disponível
20
RH sleeve
AP8223108
Não disponível
21
Ring
AP8163439
Não disponível
22
Shock absorber
AP8223110
Não disponível
23
Return spring
AP8223111
Não disponível
24
Stroke limit stop
AP8163289
17,80€ Preço unitário com IVA
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
