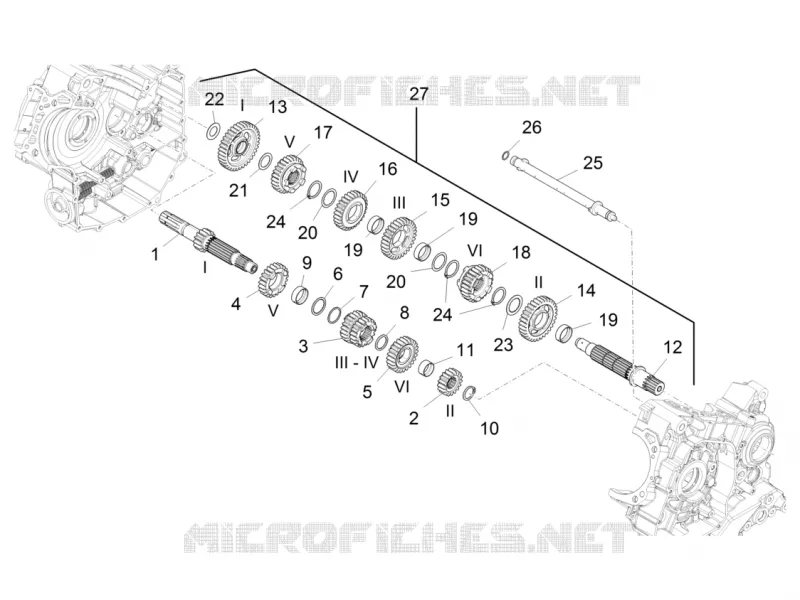

Gear box - Gear assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
20
20
21
22
23
24
24
25
26
27
1
Primary gear shaft
B013937
146,20€ Preço unitário com IVA
2
2nd pinion gear
876568
55,20€ Preço unitário com IVA
3
3rd-4th pinion gear
880194
81,40€ Preço unitário com IVA
4
5th pinion gear
880195
58,91€ Preço unitário com IVA
5
6th pinion gear
880196
56,18€ Preço unitário com IVA
6
Clearance washer
849424
5,03€ Preço unitário com IVA
7
Snap ring
849426
6,30€ Preço unitário com IVA
8
Clearance washer
974163
25,48€ Preço unitário com IVA
9
Moveable bush
849308
36,37€ Preço unitário com IVA
10
Snap ring
974165
4,97€ Preço unitário com IVA
11
Moveable bush
974162
38,84€ Preço unitário com IVA
12
Driven shaft
876561
177,37€ Preço unitário com IVA
13
1st wheel gear
876559
80,82€ Preço unitário com IVA
14
2nd wheel gear
876569
44,92€ Preço unitário com IVA
15
3rd wheel gear
880197
44,83€ Preço unitário com IVA
16
4th wheel gear
880198
Não disponível
17
5th wheel gear
880199
Não disponível
18
6th wheel gear
880200
Não disponível
19
Moveable bush
849308
36,37€ Preço unitário com IVA
20
Clearance washer
849310
7,99€ Preço unitário com IVA
21
Clearance washer
974167
7,75€ Preço unitário com IVA
22
Clearance washer
974166
8,10€ Preço unitário com IVA
23
Clearance washer
849309
5,11€ Preço unitário com IVA
24
Snap ring
849311
5,17€ Preço unitário com IVA
25
Lubrication
876546
23,77€ Preço unitário com IVA
26
O-ring
224035
7,80€ Preço unitário com IVA
27
Gear box assy
B013936
Não disponível
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
