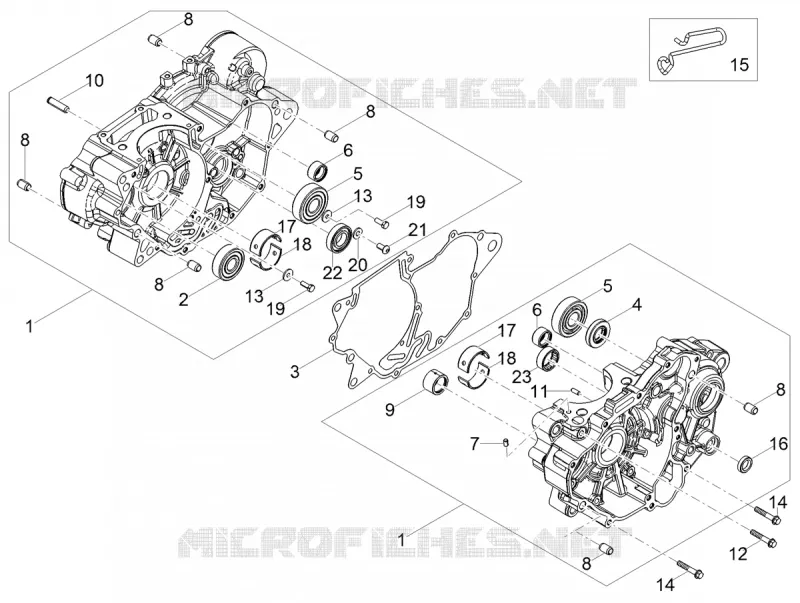

Crankcases I
23
22
21
20
19
19
18
18
17
17
16
15
14
14
13
13
12
11
10
9
8
8
8
8
8
8
7
6
6
5
5
4
3
2
1
1
1
2nd cat. complete crankcase
1A0058840B
533,52€ Preço unitário com IVA
1
Complete crankcase 1st cat.
1A0058840A
533,52€ Preço unitário com IVA
2
Radial ball bearing 15x42x13
485912
Não disponível
3
Gasket
873086
19,91€ Preço unitário com IVA
4
Oil seal
847019
8,17€ Preço unitário com IVA
5
Bearing
82668R
29,64€ Preço unitário com IVA
6
Roller cage
182015
11,17€ Preço unitário com IVA
7
Locating dowel
484993
3,19€ Preço unitário com IVA
8
Pin 6,5x9,5x15
239388
Não disponível
9
Roller cage
177442
9,55€ Preço unitário com IVA
10
Shaft pin
847076
13,64€ Preço unitário com IVA
11
Plug M6x10
842360
4,39€ Preço unitário com IVA
12
Screw w/ flange M6x75
828922
3,47€ Preço unitário com IVA
13
Washer 5,2X15X1,5
224664
3,82€ Preço unitário com IVA
14
screw M6x60
432142
Não disponível
15
Hose clamp
873735
13,64€ Preço unitário com IVA
16
Oil seal 12x20
847075
7,66€ Preço unitário com IVA
17
Cat.b red bushing half-shells
8580170002
Não disponível
17
Cat.a blue bushing half-shells
8580170001
Não disponível
18
Cat.b blue bushing half-shells
8580180002
Não disponível
18
Cat.a red bushing half-shells
8580180001
Não disponível
19
screw M5x14
031057
1,87€ Preço unitário com IVA
20
Flat washer
006125
3,41€ Preço unitário com IVA
21
Hex socket screw M6x12
274369
2,46€ Preço unitário com IVA
22
Bearing
898627
17,05€ Preço unitário com IVA
23
Roller cage
898628
12,92€ Preço unitário com IVA
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
