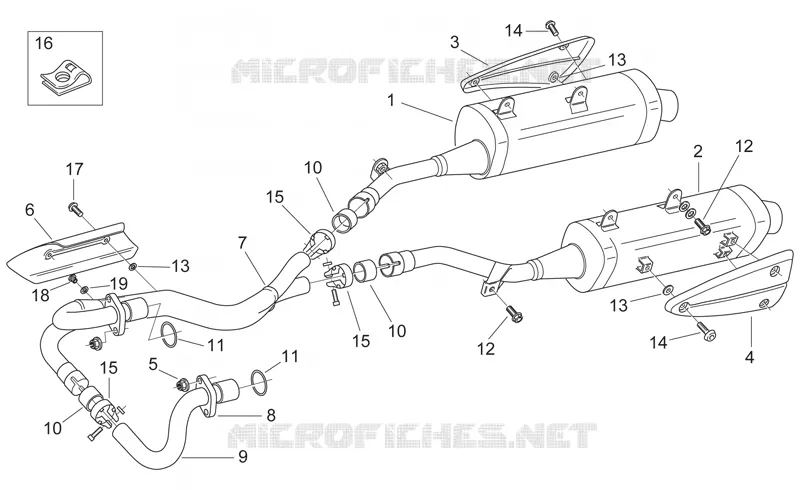

Exhaust unit
1
2
3
4
5
6
7
8
9
10
10
10
11
11
12
12
13
13
13
14
14
15
15
15
16
17
18
19
1
RH silencer w/catalyzer
AP8119445
Não disponível
1
RH silencer, painted
AP8119367
Não disponível
1
RH silencer, painted
AP8119534
Não disponível
2
LH silencer, painted
AP8119535
Não disponível
2
LH silencer w/catalyzer
AP8119446
Não disponível
2
LH silencer, painted
AP8119369
Não disponível
3
RH silencer prot., black
AP8119371
Não disponível
3
RH silencer prot., black
AP8119463
54,34€ Preço unitário com IVA
4
LH silencer prot., black
AP8119464
54,34€ Preço unitário com IVA
4
LH silencer prot., black
AP8119372
Não disponível
5
Nut M8
AP8150334
Não disponível
6
Exhaust pipes cover
AP8135978
51,19€ Preço unitário com IVA
7
RH exhaust pipe with flange
AP8135979
Não disponível
8
Chrome flange collar, black
AP8135304
Não disponível
9
LH exhaust pipe
AP8119427
Não disponível
10
Gasket ring D30x35x20
AP8120823
Não disponível
11
Exhaust unit gasket
AP8119425
7,24€ Preço unitário com IVA
12
Screw w/ flange
AP8152285
3,74€ Preço unitário com IVA
13
Insulating washer
AP8221297
3,36€ Preço unitário com IVA
14
Screw w/ flange M6x16
AP8152246
6,04€ Preço unitário com IVA
15
Silencer clip
AP8102747
37,87€ Preço unitário com IVA
16
Clip M6
AP8102376
Não disponível
17
Screw w/ flange M6x16
AP8152278
3,74€ Preço unitário com IVA
18
CO intake screw
AP8119602
Não disponível
19
Washer 10x14x1
AP8119603
18,80€ Preço unitário com IVA
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
