por

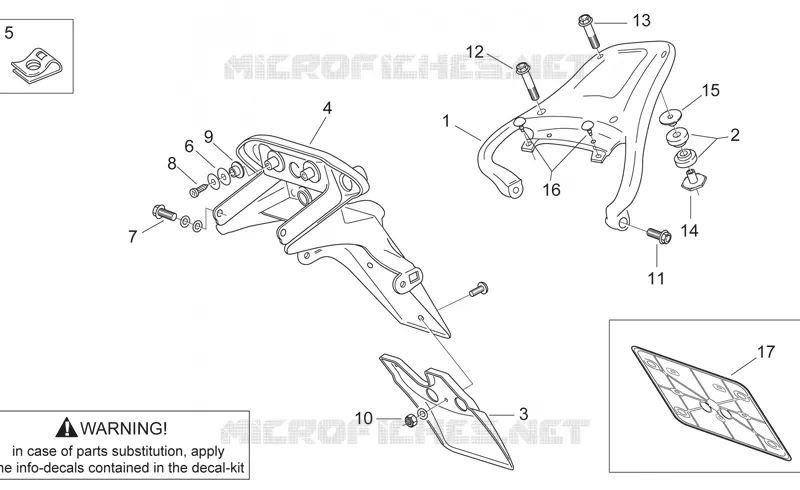

Rear body
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Luggage rack, alum.
AP8138954
Não disponível
1
Luggage rack
AP8148901
Não disponível
2
Rubber spacer
AP8144082
Não disponível
3
Number-plate extension
AP8126584
Não disponível
3
Number-plate extension
AP8126767
Não disponível
3
Number-plate extension
AP8126726
Não disponível
4
Number plate holder, grey
AP8126479
99,58€ Preço unitário com IVA
4
Number plate holder, blue
AP8126727
Não disponível
5
Clip M6
AP8102376
Não disponível
6
Washer 6x20x3*
AP8120276
2,83€ Preço unitário com IVA
7
Screw w/ flange M6x16
AP8152278
3,74€ Preço unitário com IVA
8
Phillips screw, SWP M5x20
AP8152329
3,74€ Preço unitário com IVA
9
Silent-block *
AP8120275
4,74€ Preço unitário com IVA
10
Self-locking nut M6
AP8152299
3,74€ Preço unitário com IVA
11
Screw w/ flange M8x20
AP8152286
4,64€ Preço unitário com IVA
12
Screw w/ flange
AP8152284
3,74€ Preço unitário com IVA
13
Screw w/ flange M6x35
AP8152282
3,07€ Preço unitário com IVA
14
Threaded bush
AP8121259
Não disponível
15
Bush
AP8121260
Não disponível
16
Rubber spacer
AP8220238
4,43€ Preço unitário com IVA
17
Number plate support
AP8149034
28,61€ Preço unitário com IVA
Os esquemas são fornecidos apenas para referência. Em caso de dúvida, os nossos especialistas estão disponíveis para responder às suas questões. Ao adicionar uma peça ao carrinho, certifique-se de selecionar a quantidade pretendida. O preço unitário apresentado corresponde a uma unidade de cada referência.
